The Eastern Endoscopy Equine Dental Endoscope

Shown with LED light stick & HD USB wired camera & coupler options

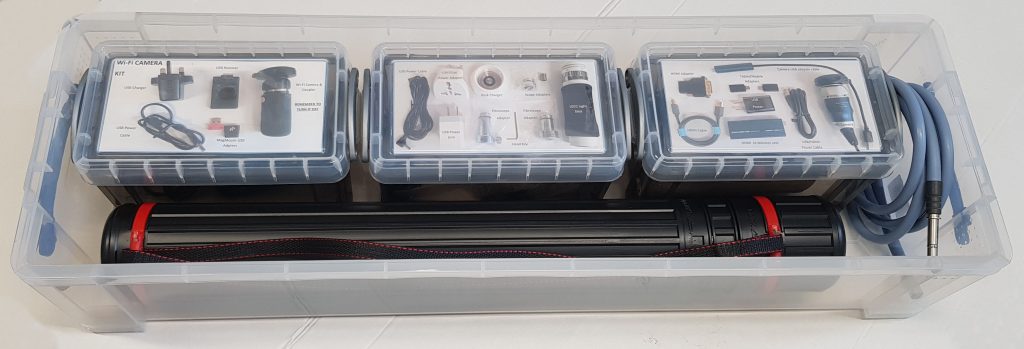

Supplied in splash proof non degrading plastic storage/transport boxes

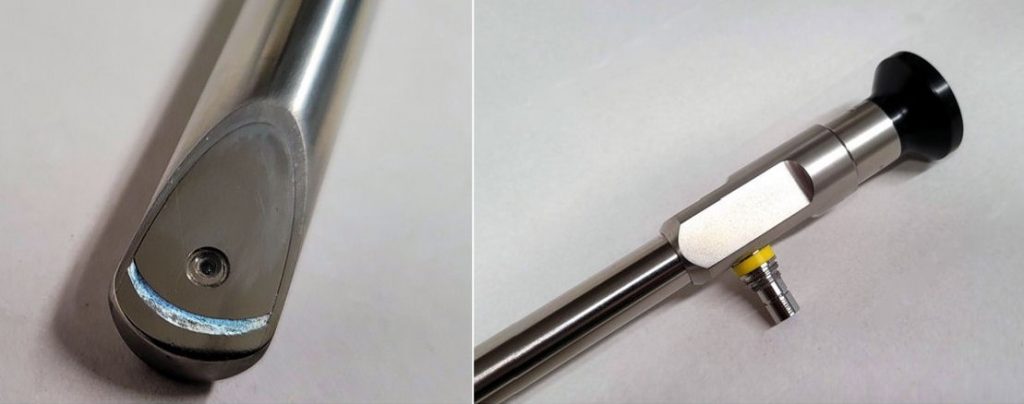

70 degree crystal glass
distal window

THE EASTERN ENDOSCOPY EQUINE DENTALSCOPE

70 degree viewing -14mm standard diameter x 40cm shaft length

Custom 10mm & 8mm diameter shafts* are available at additional cost of £150 each

The Dental Equine Endoscope Focus is superb and fixed. A wide depth of field means minimal adjustment is needed to get terrific images.

This 70 degree distal tip and working tube has been developed specifically to protect the endoscope during use.

The 14mm standard diameter working tube is fully enclosed in thick-walled, strong high-quality stainless steel for protection.

The light bundle is of very high quality and transmits more than enough light to allow the use of the latest powerful stick handle LED light source we can supply with this endoscope. (see below)

We use a standard endoscopy eyepiece so that you may use your current video camera system too.


All units have the same high quality optics but use a different outer casing…
a thick walled 14mm or 10mm heavy duty safety tube or a lighter but very strong 8mm tube… your choice.

40cm optical system shaft length + 48cm total length and fully waterproof.
14mm, 10mm or 8mm diameter* toughened steel shaft options
70 Degree view with flat debris proof crystal glass distal tip
Plastic storage tube with shoulder strap

£1695.00 + vat

SEE CAMERA OPTIONS BELOW

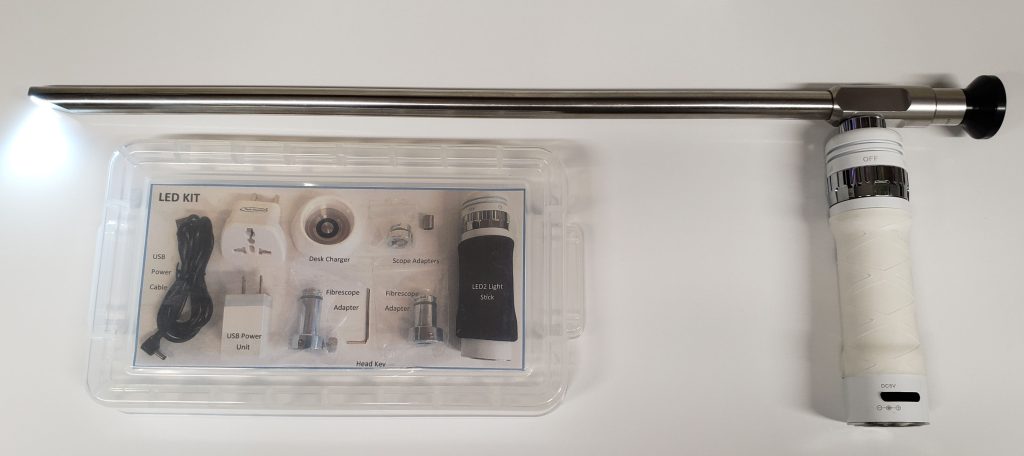

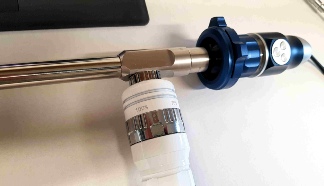

OPTIONAL Hi-POWER RECHARGEABLE LED2 LIGHT STICK

NEW CLICK ON DESIGN
Only screw the base adapter on once…. then just offer up the LED stick and twist… that’s it!

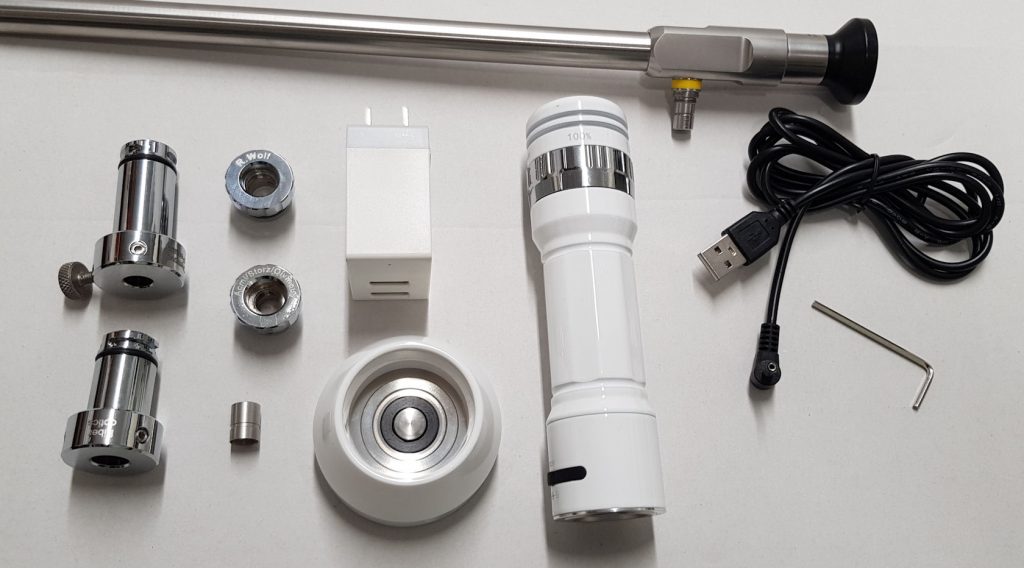

Click on this KIT image to see how to connect the LED2
CLICK THE VIDEO ICON TO SEE CONNECTION INSTRUCTIONS

£199.95 + vat

High intensity switching (100%/70%) LED2 light stick

PLEASE NOTE:
This LED, although SPLASH PROOF, is recommended for use with plastic arthroscopy bags in very wet conditions….

WIPE OR GAS STERILISE – DO NOT SOAK

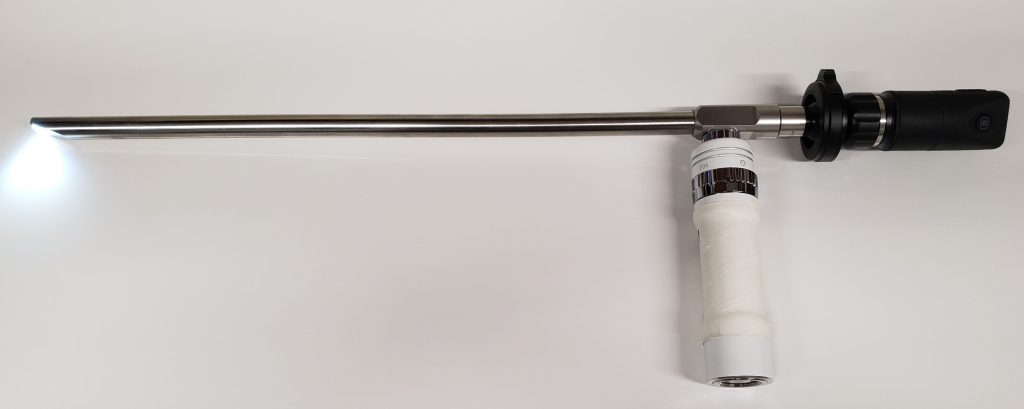

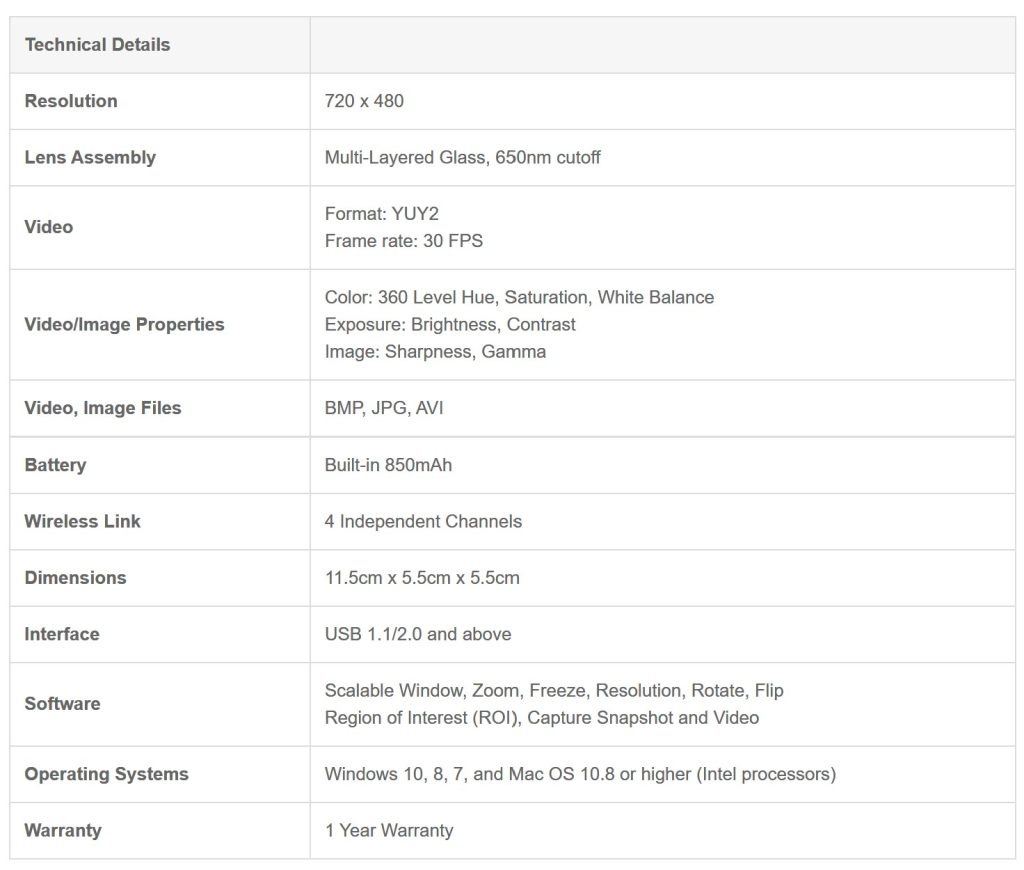

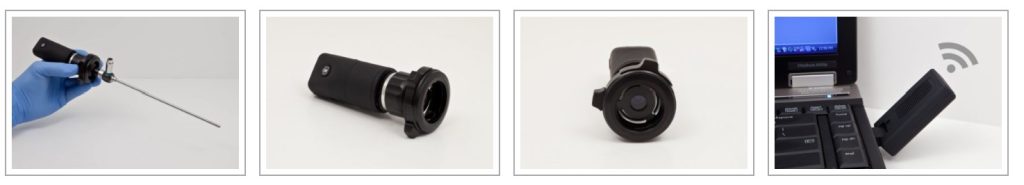

CAMERA OPTION 1 Wi-Fi camera kit

CLICK TO SEE IT IN ACTION

Equine Dentalscope + LED2 light source + Wi-Fi camera + coupler + Intel CPU Laptop

The laptop package includes a Windows 10 laptop fully configured with software ready to use

Superb 720p HD viewing & imaging recording software to achieve archive quality video & still Images included. Camera head – gas sterilisation only or use wipes/camera drapes (£35 for 10)

Laptop + Software – fully configured ready for use

£2990.00 + VAT

Delivery usually within 21 days of placing your order. Pre Payment required to get these super low prices

PLEASE NOTE:

Although SPLASH PROOF
this camera option must be used in conjunction with plastic arthroscopy bags in wet conditions….

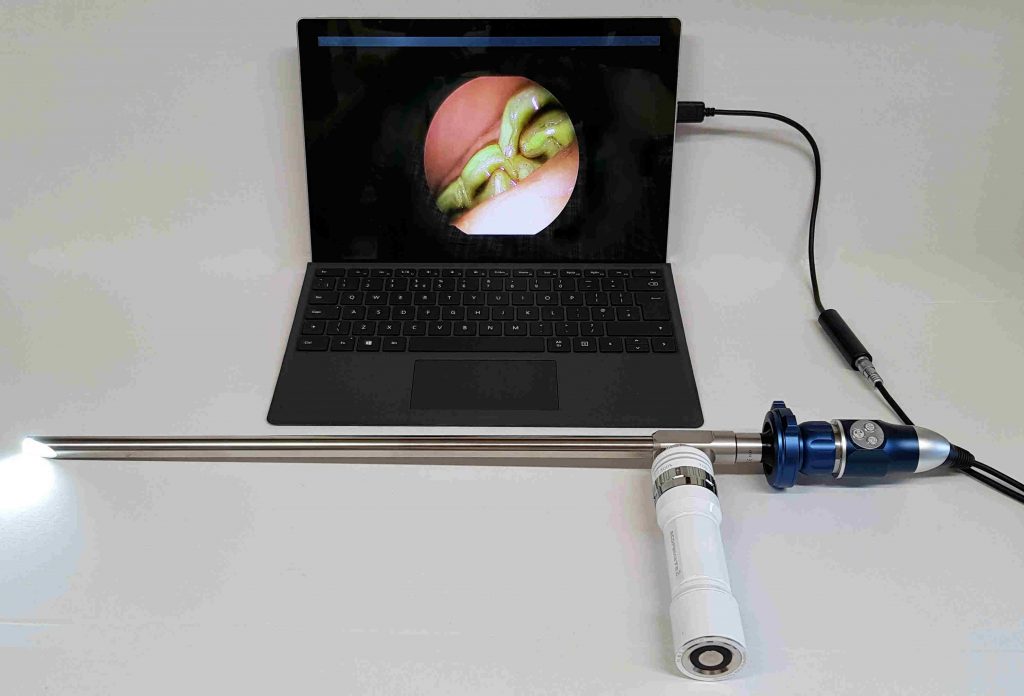

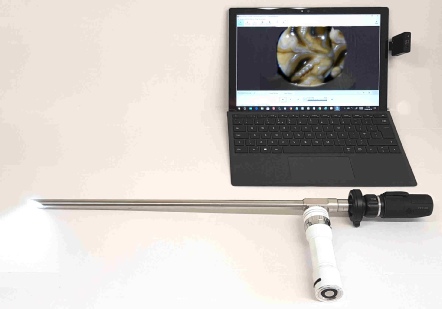

CAMERA OPTION 2 – Full HD 1080p x 1920p wired USB camera

Full HD 1080p x 1920p images

Equine Dentalscope + LED2 light source +
USB 1080p Full HD Wired camera + Coupler
+ Intel CPU FULL HD 1080 x 1920 LAPTOP configured and ready to go

CLICK THE VIDEO OPTION TO SEE IT IN ACTION

This is an upgraded camera chip version that gives you 1080p x 1920p HDMI imaging direct to a Windows 10 FULL HD laptop.

Uses Microsoft Camera viewing and recording App

‘On Camera’ buttons for FREEZE FRAME, WHITE BALANCE & STANDARD/SURGICAL colour control… Splash proof camera head – gas sterilisation or wipes/camera drapes recommended (£35 for 10 )

USB 1080p Wired camera + Coupler
+ Intel CPU FULL HD 1080 x 1920 LAPTOP

£2990.00 + VAT

Delivery usually within 21 days of placing your order
Pre Payment required to get these super low prices

PLEASE NOTE:
This camera option is SPLASH PROOF therefore arthroscopy bags do not need to be used but are still recommended
preferably wipe sterilise or gas this camera… not to be soaked

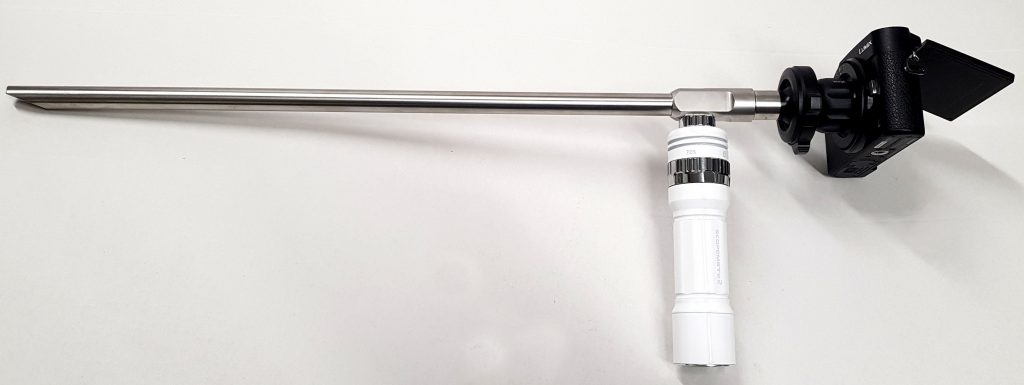

OPTION 3: DIGITAL CAMERA

Just snap on the rechargeable digital camera power up and view via the built in 3″ screen ANYWHERE!

You can record still images or video to the cameras built in SD card recorder

This camera can connect via Wi-Fi to your iPad or Android tablet via an exclusive App to view a larger image and control the camera recording functions… all recording are stored on the camera SD card not the tablet – dependant on your tablet configuration

14mm Dentalscope + LED2 Light stick + Digital Camera Kit + Storage plastic boxes now only:

£2595.00 + VAT

Click to view the digital camera option 4 in use

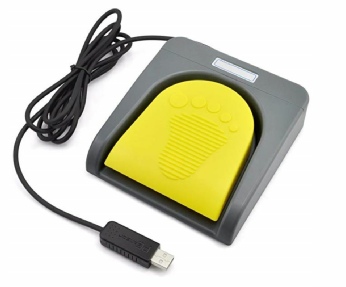

FOOT SWITCH OPTION

For remote control start/stop of images & video capture. Not waterproof – must be bagged.

£65 + VAT
